- 17.2 Meter Max Lift Height
- 5Ton Max Lift Capacity
- 1.4 Meter（ 55”） Width
- Fits through standard door
|
Model |
LT5.0 |
|
|
Capacity |
5.0t×2.2m |
|
|
Working radius |
16.14m×0.21t |
|
|
Ground lifting height |
17.2Mx1.15t |
|
|
Underground lifting height |
17.5mX2.5t(4 fall) 35mX2t(2 fall) 70mX1t(1 fall) |
|
|
Winch device |
Hook speed |
0-14m/min (4 fall） |
|
Rope type |
Φ10mm×80m（Minimum breaking force 90.1KN 1960N/mm²） |
|
|
Telescopic system |
Boom form |
5 section boom, hexagonal box construction |
|
Boom length/Time |
4.64m-16.64m/45sec |
|
|
Up and downs |
Boom angle/Time |
0-80°/18sec |
|
Slew system |
Slew angle/Speed |
0-360°（continuous）/30sec |
|
Outrigger |
Outrigger active form |
Manual+Hydraulic |
|
Maximum extended dimensions (mm) |
5880（Length）X5700（Front）X5950（Back） |
|
|
Traction system |
Walking way |
Hydraulic motor drive、2 speed |
|
Walking speed |
0-3km/ h |
|
|
Grade ability |
20°(36%) |
|
|
Ground length×width |
1810mm×350 mm |
|
|
Ground pressure |
44kpa（0.45 kgf / cm²） |
|
|
Electric motor |
Voltage |
AC380V（Optional） |
|
Power/Speed |
7.5kw/1440 min-1 |
|
|
Sound level |
Rated speed ≤60dB(A) （1m） |
|
|
Diesel engine
|
Model |
3TNV80F (YANMAR) |
|
Type/Displacement |
3 cylinder water cooled/1.266L |
|
|
Rated output |
14.6kw/2400 min-1 |
|
|
Starting method |
Electric
|
|
|
Operating temperature |
-5°C~40°C |
|
|
Fuel/Volume |
Diesel/40L |
|
|
Battery capacity |
12v 45AH |
|
|
Specific fuel consumption |
272g/kW-h |
|
|
Sound Level |
Rated speed ≤83.5dB(A) (1m) |
|
|
Applied regulation |
EPA-Tier4，China phase 4 |
|
|
Operate system
|
Type of operation (crane, walk, leg、accelerator） |
Wireless remote control and Dual axis joystick controller |
|
Operating characteristic |
Full proportional control and Proportional joystick control |
|
|

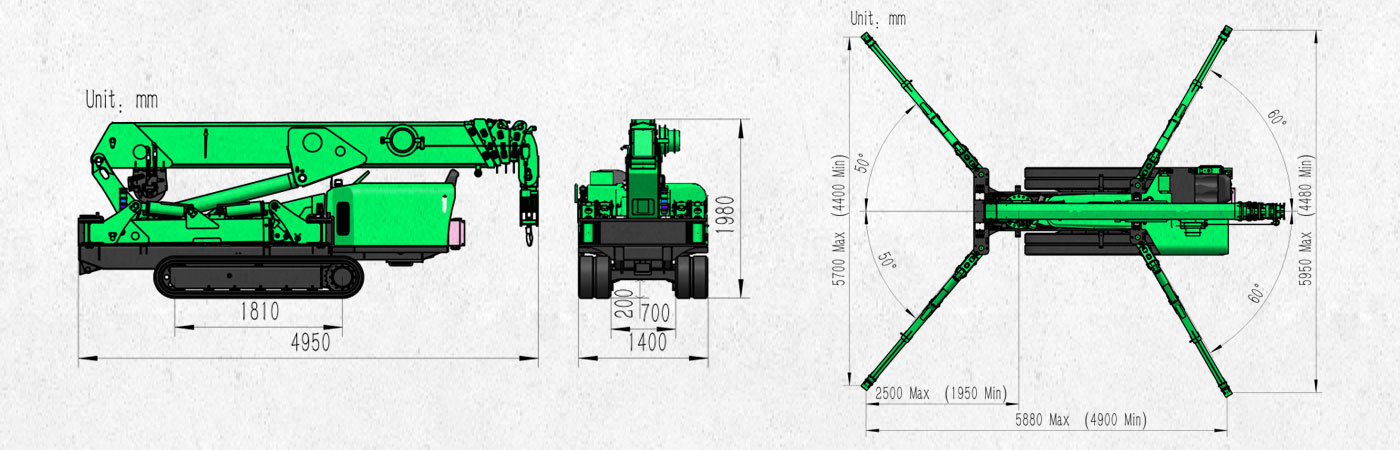

Dimension |
Length×Width×Height |
4950mm×1400mm×1980mm |
|
Weight |
(Without optional equipment） |
5750kg |
|
Standard equipment |
Diesel engine and motor (Dual power)、Proportional joystick control and wireless proportional remote (Dual operation mode) 、Intelligent display screen、Moment limiter、Over hoist alarm and automatic stop device、Three-winding alarm and automatic stop device、Automatic hook stow、Outrigger position detector device、Outrigger off ground (or crane body 3-degree inclination)alarm and automatic stop device、Slinging rope detachment protector、EMO switch、Three color lamp、Remote control lamp、Voice prompt、Walking/Outrigger/Boom three-mode interlock system、Data records |
|
|
Optional equipment |
Searcher hook（0.7t） 、Fly jib(0.8t)、Single fall hook、Outrigger Pads、Man basket |
|
|

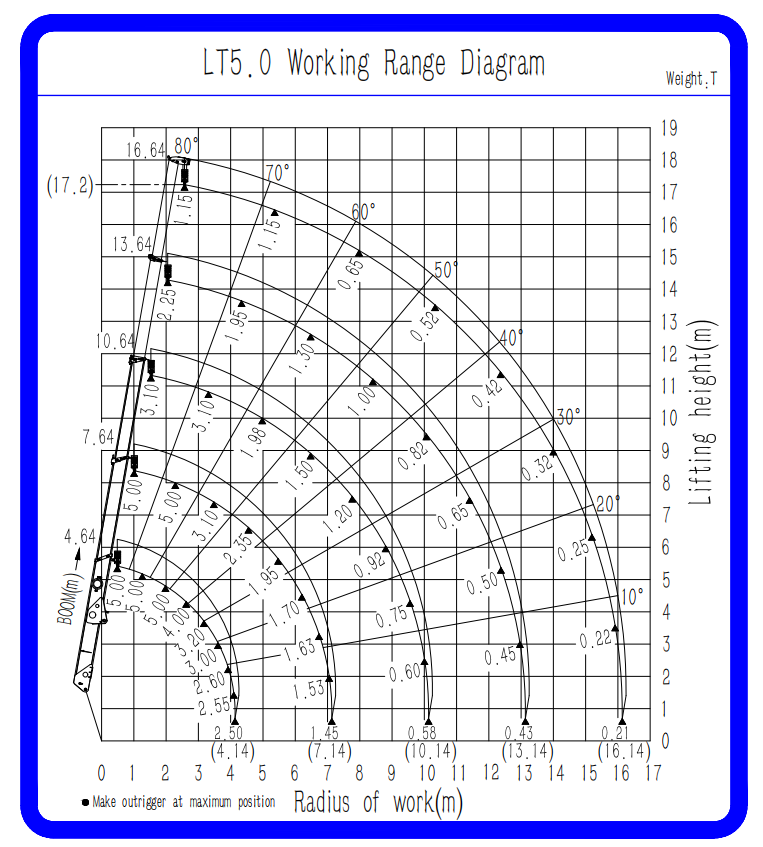

4.64/7.64 boom |
10.64 boom |
13.64 boom |
16.64 boom |
||||
|
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
|
＜2.20 |
5.00 |
＜3.5 |
3.10 |
＜4.00 |
2.25 |
＜5.00 |
1.15 |
|
2.50 |
4.20 |
4.00 |
2.58 |
4.50 |
1.93 |
5.50 |
0.98 |
|
3.00 |
3.55 |
4.50 |
2.25 |
5.00 |
1.73 |
6.00 |
0.91 |
|
3.50 |
3.10 |
5.00 |
1.98 |
6.00 |
1.40 |
7.00 |
0.76 |
|
4.00 |
2.60 |
6.00 |
1.68 |
7.00 |
1.18 |
8.00 |
0.65 |
|
5.00 |
2.20 |
7.00 |
1.38 |
8.00 |
1.03 |
9.00 |
0.60 |
|
6.00 |
1.72 |
8.00 |
1.13 |
9.00 |
0.93 |
10.00 |
0.55 |
|
7.00 |
1.55 |
9.00 |
0.88 |
10.00 |
0.83 |
11.00 |
0.49 |
|
7.14 |
1.45 |
10.14 |
0.58 |
11.00 |
0.69 |
12.00 |
0.44 |
|
|
|
|
|
12.00 |
0.53 |
13.00 |
0.38 |
|
|
|
|
|
13.14 |
0.43 |
14.00 |
0.32 |
|
|
|
|
|
|
|
15.00 |
0.26 |
|
|
|
|
|
|
|
16.14 |
0.21 |
|
4.64/7.64 boom |
10.64 boom |
13.64 boom |
16.64 boom |
||||
|
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
|
＜2.20 |
5.00 |
＜3.50 |
3.10 |
＜4.00 |
2.25 |
＜5.00 |
1.15 |
|
2.50 |
4.20 |
4.00 |
2.58 |
4.50 |
1.83 |
5.50 |
0.98 |
|
3.00 |
3.55 |
4.50 |
1.95 |
5.00 |
1.63 |
6.00 |
0.88 |
|
3.50 |
3.10 |
5.00 |
1.68 |
6.00 |
1.18 |
7.00 |
0.73 |
|
4.00 |
2.60 |
6.00 |
1.18 |
7.00 |
0.73 |
8.00 |
0.53 |
|
5.00 |
1.68 |
7.00 |
0.88 |
8.00 |
0.68 |
9.00 |
0.45 |
|
6.00 |
1.18 |
8.00 |
0.73 |
9.00 |
0.55 |
10.00 |
0.42 |
|
7.00 |
0.93 |
9.00 |
0.58 |
10.00 |
0.43 |
11.00 |
0.37 |
|
7.14 |
0.78 |
10.14 |
0.40 |
11.00 |
0.38 |
12.00 |
0.33 |
|
|
|
|
|
12.00 |
0.35 |
13.00 |
0.28 |
|
|
|
|
|
13.14 |
0.31 |
14.00 |
0.24 |
|
|
|
|
|
|
|
15.00 |
0.19 |
|
|
|
|
|
|
|
16.14 |
0.15 |
