- 14.5 Meter Max Lift Height
- 4 Ton Max Lift Capacity
- 1.4 Meter（ 55”） Width
- Fits through standard door
|
Model |
LT 4.0 |
|
|
Capacity |
4t×2m |
|
|
Working radius |
13.65m×0.20t |
|
|
Ground lifting height |
14.5mX0.85t |
|
|
Underground lifting height |
16mX2t(4 fall) 32mX1t(2 fall) 64mX1t(1 fall) |
|
|
Winch device |
Hook speed |
0-12m/min (4 fall） |
|
Rope type |
Φ8mm×73m（Minimum breaking force 60.6KN 2160N/mm²） |
|
|
Telescopic system |
Boom form |
5 section boom, hexagonal box construction |
|
Boom length/Time |
3.54m-12.3m/25sec |
|
|
Up and downs |
Boom angle/Time |
0-80°/14.5sec |
|
Slew system |
Slew angle/Speed |
0-360°（continuous）/30sec |
|
Outrigger |
Outrigger active form |
Manual+Hydraulic |
|

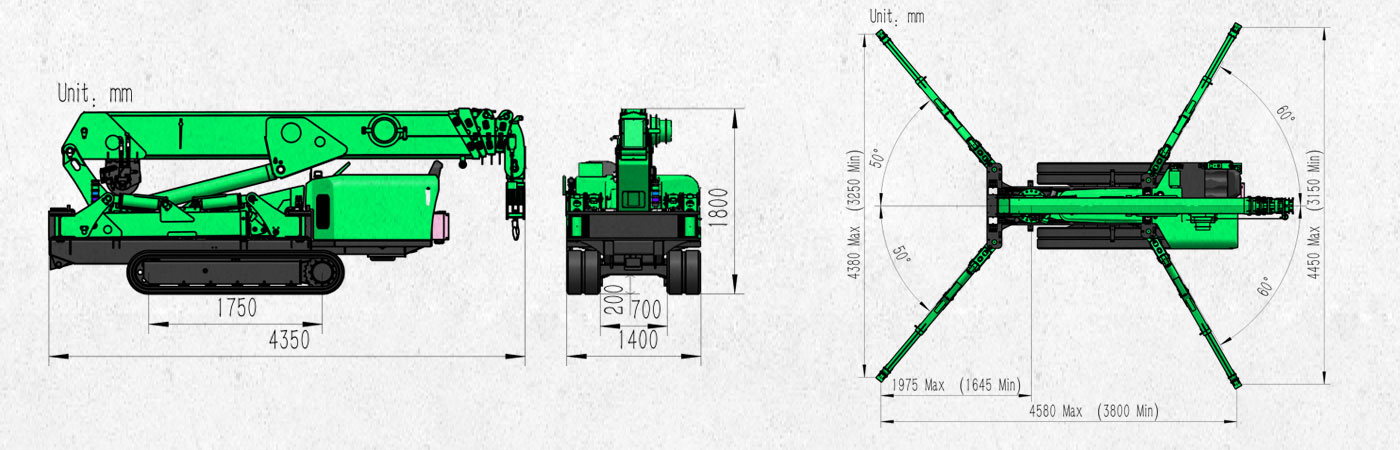

Maximum extended dimensions (mm) |
4580（Length）X4380（Front）X 4450（Back） |
|
|
Traction system |
Walking way |
Hydraulic motor drive、2 speed |
|
Walking speed |
0-3km/ h |
|
|
Grade ability |
20°(36%) |
|
|
Ground length×width |
1750mm×300 mm |
|
|
Ground pressure |
42.8kpa（0.437 kgf/cm²） |
|
|
Electric motor |
Voltage |
AC380V（Optional） |
|
Power/Speed |
5.5kw/1440 min-1 |
|
|
Sound level |
Rated speed ≤60dB(A) （1m） |
|
|
Diesel engine
|
Model |
3TNV80(YANMAR) |
|
Type/Displacement |
3 cylinder water cooled/1.266L |
|
|
Rated output |
14.6kw/2400 min-1 |
|
|
Starting method |
Electric
|
|
|
Operating temperature |
-5°C~40°C |
|
|
Fuel/Volume |
Diesel/40L |
|
|
Battery capacity |
12v 45AH |
|
|
Specific fuel consumption |
272g/kW-h |
|
|
Sound Level |
Rated speed ≤83.5dB(A) (1m) |
|
|
Applied regulation |
EPA-Tier4，China phase 4 |
|
|
Operate system
|
Type of operation (crane, walk, leg、accelerator） |
Wireless remote control and Dual axis joystick controller |
|
Operating characteristic |
Full proportional control and Proportional joystick control |
|
|
Dimension |
Length×Width×Height |
4350mm×1400mm×1800mm |
|
Weight |
(Without optional equipment） |
4700kg |
|
Standard equipment |
Diesel engine and motor (Dual power)、Proportional joystick control and wireless proportional remote (Dual operation mode) 、Intelligent display screen、Moment limiter、Over hoist alarm and automatic stop device、Three-winding alarm and automatic stop device、Automatic hook stow、Outrigger position detector device、Outrigger off ground (or crane body 3-degree inclination)alarm and automatic stop device、Slinging rope detachment protector、EMO switch、Three color lamp、Remote control lamp、Voice prompt、Walking/Outrigger/Boom three-mode interlock system、Data records |
|
|
Optional equipment |
Searcher hook（0.7t） 、Fly jib(0.8t)、Single fall hook、Outrigger Pads、Man basket |
|
|

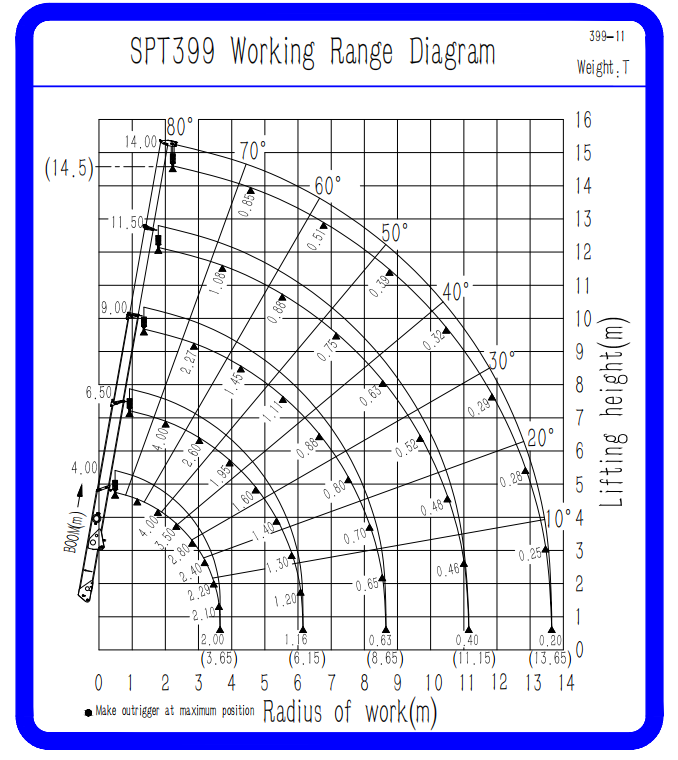

4.00/6.50 boom |
9.00 boom |
11.50 boom |
14.00 boom |
||||
|
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
|
＜2.00 |
4.00 |
＜2.70 |
2.27 |
＜4.00 |
1.08 |
＜4.50 |
0.85 |
|
2.20 |
3.50 |
3.00 |
2.12 |
4.50 |
0.98 |
5.00 |
0.75 |
|
2.50 |
3.20 |
3.50 |
1.98 |
5.00 |
0.92 |
5.50 |
0.65 |
|
3.00 |
2.65 |
4.00 |
1.68 |
5.50 |
0.88 |
6.00 |
0.59 |
|
3.50 |
2.10 |
4.50 |
1.35 |
6.00 |
0.85 |
6.50 |
0.52 |
|
4.00 |
1.91 |
5.00 |
1.26 |
6.50 |
0.82 |
7.00 |
0.48 |
|
4.50 |
1.71 |
5.50 |
1.11 |
7.00 |
0.77 |
8.00 |
0.43 |
|
5.00 |
1.49 |
6.00 |
0.95 |
7.50 |
0.72 |
9.00 |
0.37 |
|
6.00 |
1.25 |
7.00 |
0.85 |
8.00 |
0.65 |
10.00 |
0.32 |
|
6.15 |
1.16 |
8.00 |
0.73 |
9.00 |
0.57 |
11.00 |
0.30 |
|
|
|
8.65 |
0.63 |
10.00 |
0.50 |
12.00 |
0.28 |
|
|
|
|
|
11.15 |
0.40 |
13.00 |
0.25 |
|
|
|
|
|
|
|
13.65 |
0.20 |
