- 9.5 Meter Max Lift Height
- 2.95 Ton Max Lift Capacity
- 0.8 Meter （ 31”）Width
- Fits through standard door
|
Model |
LT3.0 |
|
|
Capacity |
2.95t×1.3m |
|
|
Working radius |
8.79m×0.14t |
|
|
Ground lifting height |
9.5mX0.7t |
|
|
Underground lifting height |
10mX1t(4 fall) 20mX1t(2 fall) 40mX0.74t(1 fall) |
|
|
Winch device |
Hook speed |
0-8m/min (4 fall） |
|
Rope type |
Φ8mm×50m（Minimum breaking force 60.6KN 2160N/mm²） |
|
|
Telescopic system |
Boom form |
5 section boom, hexagonal box construction |
|
Boom length/Time |
2.82m-9.18m/20sec |
|
|
Up and downs |
Boom angle/Time |
0-70°/13sec |
|
Slew system |
Slew angle/Speed |
0-360°（continuous）/60sec |
|
Outrigger |
Outrigger active form |
Manual+Hydraulic |
|
Maximum extended dimensions (mm) |
4735（Length）X3850（Front）X4570（Back） |
|
|
Traction system |
Walking way |
Hydraulic motor drive、2 speed |
|
Walking speed |
0-2.5km/h |
|
|
Grade ability |
20°(36%) |
|
|
Ground length×width |
1150mm×230 mm |
|
|
Ground pressure |
42kpa（0.43 kgf/cm²） |
|
|
Electric motor |
Voltage |
AC380V（Optional） |
|
Power/Speed |
4kw/1440 min-1 |
|
|
Sound level |
Rated speed ≤60dB(A) （1m） |
|
|
Diesel engine
|
Model |
2TNV70 (YANMAR) |
|
Type/Displacement |
2 cylinder water cooled/0.57L |
|
|
Rated output |
7.5kw/2400 min-1 |
|
|
Starting method |
Electric
|
|
|
Operating temperature |
-5°C~40°C |
|
|
Fuel/Volume |
Diesel/12L |
|
|
Battery capacity |
12v 45AH |
|
|
Specific fuel consumption |
284g/kW-h |
|
|
Sound Level |
Rated speed ≤80.5dB(A) (1m) |
|
|
Applied regulation |
EPA-Tier2，China phase 3 |
|
|
Operate system
|
Type of operation (crane, walk, leg、accelerator） |
Wireless remote control and manual operation |
|
Operating characteristic |
Full proportional control and linkage control |
|
|

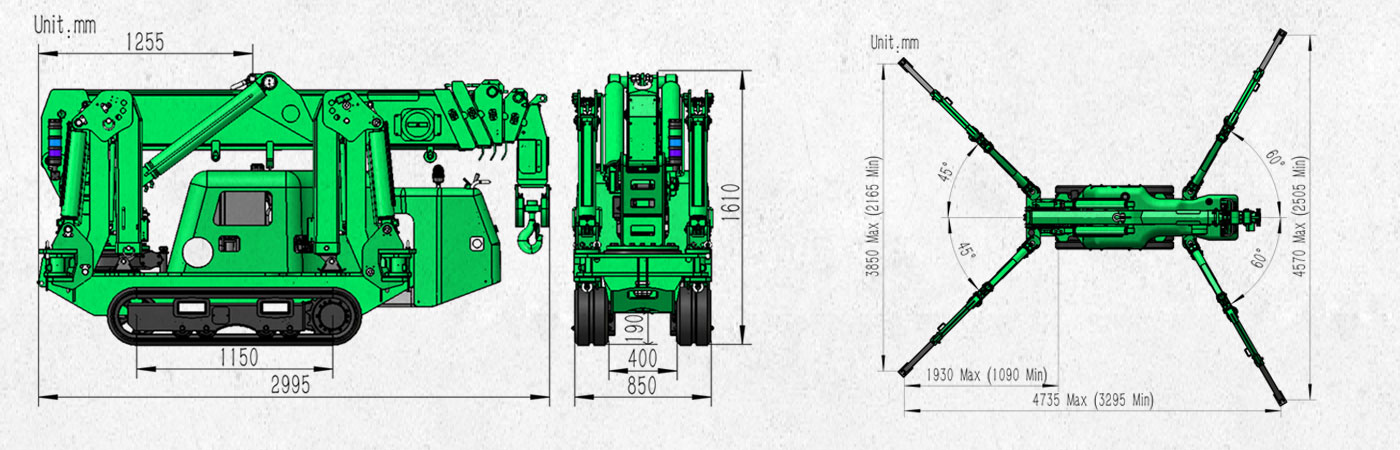

Dimension |
Length×Width×Height |
2995mm×800mm×1610mm |
|
Weight |
(Without optional equipment） |
2250kg |
|
Standard equipment |
Diesel engine and motor (Dual power)、Manual and wireless proportional remote (Dual operation mode) 、Intelligent display screen、Moment limiter、Over hoist alarm and automatic stop device、Three-winding alarm and automatic stop device、Automatic hook stow、Outrigger position detector device、Outrigger off ground (or crane body 3-degree inclination)alarm and automatic stop device、Slinging rope detachment protector、EMO switch、Three color lamp、Remote control lamp、Voice prompt、Walking/Outrigger/Boom three-mode interlock system、Data records |
|
|
Optional equipment |
Searcher hook（0.6t） 、Fly jib(0.7t)、Single fall hook、Outrigger Pads、Man basket |
|
|
2.82/4.44 boom |
6.02 boom |
7.60 boom |
9.18 boom |
||||
|
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
|
＜1.30 |
2.95 |
＜2.90 |
1.57 |
＜3.60 |
1.03 |
＜4.00 |
0.70 |
|
1.50 |
2.61 |
3.00 |
1.52 |
4.00 |
0.90 |
4.50 |
0.55 |
|
2.00 |
2.50 |
3.50 |
1.15 |
4.50 |
0.72 |
5.00 |
0.42 |
|
2.50 |
2.30 |
4.00 |
0.97 |
5.00 |
0.60 |
5.50 |
0.38 |
|
3.00 |
1.84 |
4.50 |
0.76 |
5.50 |
0.54 |
6.00 |
0.34 |
|
3.50 |
1.30 |
5.00 |
0.67 |
6.00 |
0.46 |
6.50 |
0.29 |
|
4.00 |
1.10 |
5.63 |
0.56 |
6.50 |
0.40 |
7.00 |
0.25 |
|
|
|
|
|
7.21 |
0.33 |
7.50 |
0.23 |
|
|
|
|
|
|
|
8.00 |
0.19 |
|
|
|
|
|
|
|
8.79 |
0.14 |
|
2.82/4.44 boom |
6.02 boom |
7.60 boom |
9.18 boom |
||||
|
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
|
＜1.30 |
1.80 |
＜2.90 |
0.63 |
＜3.60 |
0.50 |
＜4.00 |
0.40 |
|
1.50 |
1.56 |
3.00 |
0.62 |
4.00 |
0.40 |
4.50 |
0.34 |
|
2.00 |
1.28 |
3.50 |
0.50 |
4.50 |
0.34 |
5.00 |
0.28 |
|
2.50 |
0.80 |
4.00 |
0.40 |
5.00 |
0.28 |
5.50 |
0.22 |
|
3.00 |
0.62 |
4.50 |
0.34 |
5.50 |
0.22 |
6.00 |
0.19 |
|
3.50 |
0.50 |
5.00 |
0.28 |
6.00 |
0.19 |
6.50 |
0.16 |
|
4.00 |
0.40 |
5.63 |
0.21 |
6.50 |
0.16 |
7.00 |
0.12 |
|
|
|
|
|
7.21 |
0.12 |
7.50 |
0.10 |
|
|
|
|
|
|
|
8.00 |
0.09 |
|
|
|
|
|
|
|
8.79 |
0.06 |
