- 6.65 Meter Max Lift Height
- 1.95 Ton Max Lift Capacity
- 0.6 Meter( 24”) Width
- Fits through standard door
Model |
LT2.0 |
|
Capacity |
1.95t×1.75m |
|
Working radius |
5.86m×0.20t |
|
Ground lifting height |
6.65mX0.55t |
|
Underground lifting height |
10mX1t(4 fall) 20mX1t(2 fall) 40mX0.74t(1 fall) |
|
Winch device |
Hook speed |
0-8m/min (4 fall) |
Rope type |
Φ8mm×50m(Minimum breaking force 60.6KN 2160N/mm²) |
|
Telescopic system |
Boom form |
5 section boom, hexagonal box construction |
Boom length/Time |
1.99m-6.20m/30sec |
|
Up and downs |
Boom angle/Time |
0-70°/20sec |
Slew system |
Slew angle/Speed |
0-360°(continuous)/60sec |
Outrigger |
Outrigger active form |
Manual+Hydraulic |
Maximum extended dimensions (mm) |
3350(Length)X2900(Front)X3080(Back) |
|
Traction system |
Walking way |
Hydraulic motor drive |
Walking speed |
0-3.0km/h |
|
Grade ability |
20°(36%) |
|
Ground length×width |
1045mm×180 mm |
|
Ground pressure |
44kpa(0.45 kgf/cm²) |
|
Electric motor |
Voltage |
AC380V(Optional) |
Power/Speed |
4kw |
|
Sound level |
Rated speed ≤60dB(A) (1m) |
|
Battery
|
Model |
KD440 (KOHLER) |
Type/Displacement |
Single cylinder air cooled/0.441L |
|
Rated output |
8kw/3600 min-1 |
|
Starting method |
Electric
|
|
Operating temperature |
-5°C~40°C |
|
Fuel/Volume |
Diesel/5L |
|
Battery capacity |
12v 45AH |
|
Specific fuel consumption |
240g/kW-h |
|
Sound Level |
Rated speed ≤80dB(A) (7m) |
|
Applied regulation |
EPA-Tier4 |
|
Operate system
|
Type of operation (crane, walk, leg、accelerator) |
Wireless remote control and manual operation |
Operating characteristic |
Full proportional control and linkage control |
|

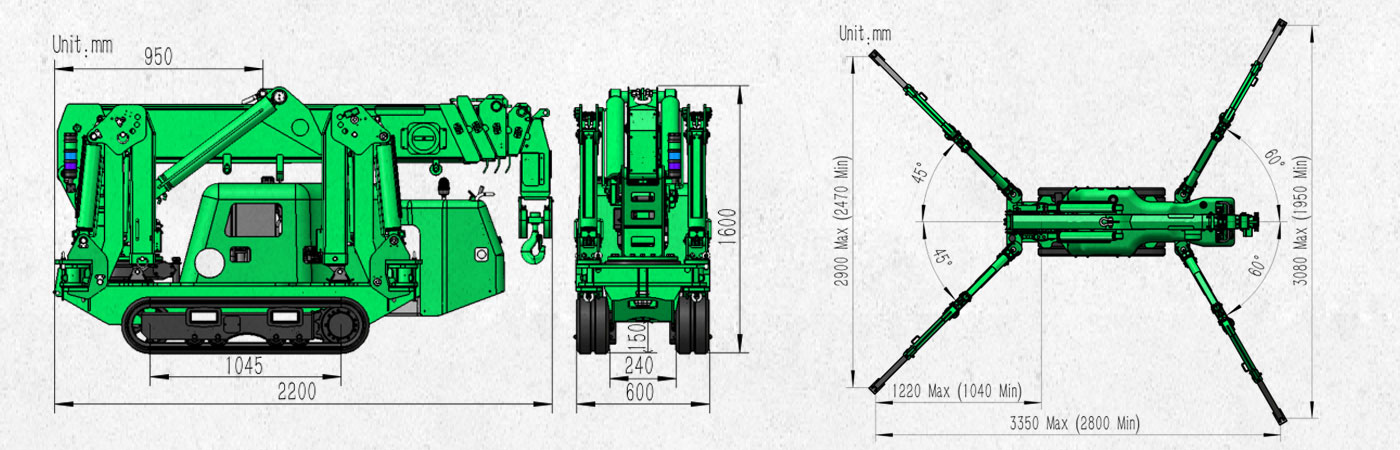

Dimension |
Length×Width×Height |
2200mm×600mm×1600mm |
Weight |
(Without optional equipment) |
1700kg |
Standard equipment |
Manual and wireless proportional remote (Dual operation mode) 、Display screen、Moment limiter、Over hoist alarm and automatic stop device、Three-winding alarm and automatic stop device、Automatic hook stow、Outrigger working condition、Outrigger off ground (or crane body 3-degree inclination)alarm and automatic stop device、Slinging rope detachment protector、EMO switch、Three color lamp、Remote control lamp、Walking/Outrigger/Boom three-mode interlock system、Data records |
|
Optional equipment |
Searcher hook(0.3t) 、Fly jib(0.5t)、Single fall hook、Outrigger Pads、Man basket |

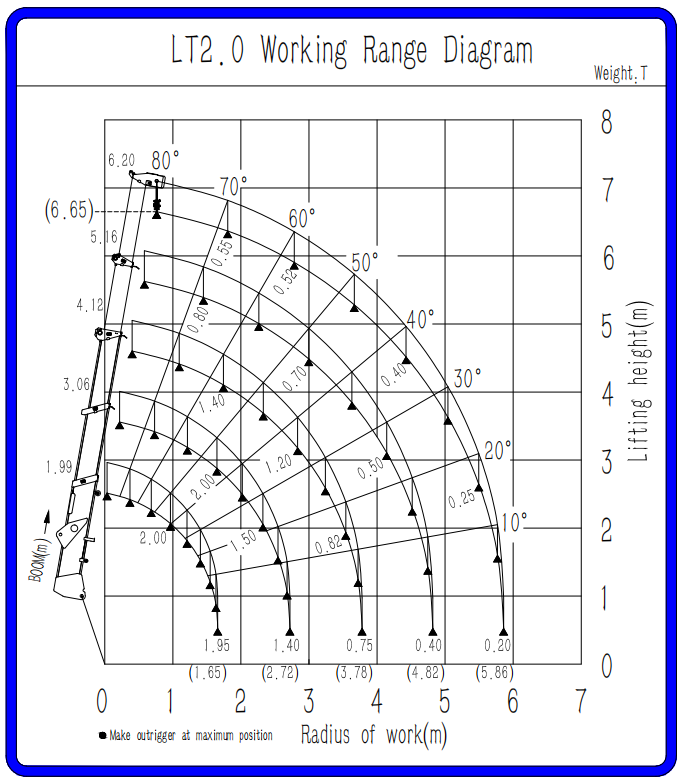

1.99/3.06 boom |
4.12 boom |
5.16 boom |
6.20 boom |
||||
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
<1.30 |
1.95 |
<1.50 |
1.40 |
<2.00 |
0.80 |
<2.50 |
0.55 |
1.50 |
1.95 |
2.00 |
1.35 |
2.50 |
0.75 |
3.00 |
0.50 |
1.75 |
1.95 |
2.50 |
1.30 |
3.00 |
0.70 6666 |
3.50 |
0.48 |
2.00 |
1.80 |
3.00 |
1.10 |
3.50 |
0.68 |
4.00 |
0.45 |
2.50 |
1.50 |
3.50 |
0.85 |
4.00 |
0.60 |
4.50 505 |
0.40 |
2.72 |
1.40 |
3.78 |
0.75 |
4.50 |
0.45 |
5.00 |
0.38 |
|
|
|
|
4.82 82 |
0.40 |
5.50 |
0.25 |
|
|
|
|
|
|
5.86 |
0.20 |
1.99/3.06 boom |
4.12 boom |
5.16 boom |
6.20 boom |
||||
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
Working radius(m) |
Total rated load(t) |
<1.30 |
1.20 |
<1.50 |
0.40 |
<2.00 |
0.25 |
<2.50 |
0.20 |
1.50 |
1.20 |
2.00 |
0.38 |
2.50 |
0.22 |
3.00 |
0.18 |
1.75 |
0.80 |
2.50 |
0.35 |
3.00 |
0.19 |
3.50 |
0.16 |
2.00 |
0.60 |
3.00 |
0.23 |
3.50 |
0.17 |
4.00 |
0.13 |
2.50 |
0.40 |
3.50 |
0.18 |
4.00 |
0.15 |
4.50 505 |
0.10 |
2.72 |
0.35 |
3.78 |
0.15 |
4.50 |
0.12 |
5.00 |
0.08 |
. |
|
|
|
4.82 82 |
0.08 |
5.50 |
0.06 |
|
|
|
|
|
|
5.86 |
0.05 |
