LT9.0 Mini Crawler Crane|GLOBAL LEADER IN THE MINI CRANE SECTOR

LT9.0
Mini Crawler Crane spider crane

20.2 Meter Max Lift Height
8.5 Ton Max Lift Capacity
1.78 Meter Width

Capacity Graphs Dimensions parameter inquiry

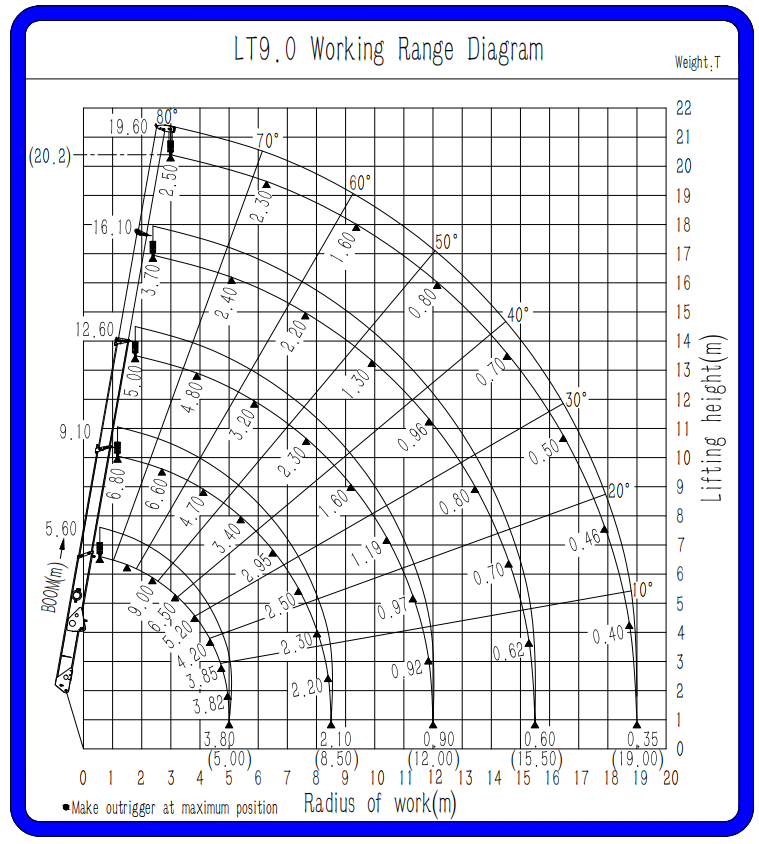

Capacity Graphs

The Rated Total Load Chart is supplied for reference only. Operator and all personnel must refer to the actual crane Rated Total Load Chart to determine allowable machine lifting and operating procedures. Levolt are constantly improving our products and reserve the right to change design and specifications at any time.

Focusing on the research, development, production and sales of high-end mini crawler cranes, Levolt introduced the most advanced European mini crawler crane technology and set up a new brand in China - Levolt. Make "building the most professional micro crawler crane in China" as its mission and goal.

2-year Warranty
Free operation training
360° Swing
Remote Control Standard
Electric and Diesel Engine Power（Both standard, do not need to pay extra）
EPA compliant engines
Searcher Hook for boom extension
5-section boom
Load Indicator & Moment Limiter System (standard)

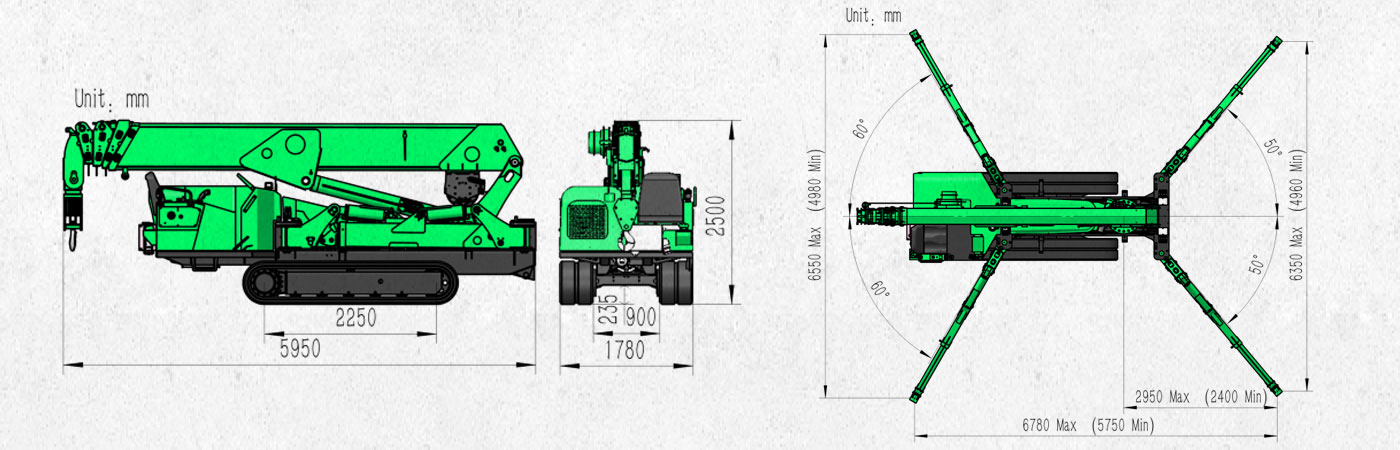

Dimensions

parameter

Specifications

Model		LT9.0
Capacity		8.5t×2.4m
Working radius		19m×0.35t
Ground lifting height		20.2mx2.50t
Underground lifting height		18mx3.8t (6 fall) 25mx3.8t (4 fall) 54mx3.8t (2 fall) 110mx1.5t (1 fall)
Winch device	Hook speed	0-12m/min (6 fall） 0-18m/min (4 fall）
Winch device	Rope type	Φ10mm×120m（Minimum breaking force 94.7KN 2160N/mm²）
Telescopic system	Boom form	5 section boom, hexagonal box construction
Telescopic system	Boom length/Time	5.6m-19.6m/55sec
Up and downs	Boom angle/Time	0-80°/25sec
Slew system	Slew angle/Speed	0-360°（continuous）/30sec
Outrigger	Outrigger active form	Manual+Hydraulic
Outrigger	Maximum extended dimensions (mm)	6780（Length）X6350（Front）X6550（Back）
Traction system	Walking way	Hydraulic motor drive、2 speed
	Walking speed	0-3.2km/ h
	Grade ability	23°(42%)
	Ground length×width	2250mm×400 mm
	Ground pressure	58kpa（0.59 kgf/cm²）
Electric motor	Voltage	AC380V（Optional）
	Power/Speed	15kw/1440 min-1
	Sound level	Rated speed ≤60dB(A) （1m）
Diesel engine	Model	4TNV88 (YANMAR)
	Type/Displacement	4 cylinder water cooled/2.190L
	Rated output	29.1kw/2400 min-1
	Starting method	Electric
	Operating temperature	-5°C~40°C
	Fuel/Volume	Diesel/60L
	Battery capacity	12v 60AH
	Specific fuel consumption	239g/kW-h
	Sound Level	Rated speed ≤85dB(A) (1m)
	Applied regulation	EC stage 3B&EPA/ARB-OR Tier4，China phase 4
Operate system	Type of operation (crane, walk, leg、accelerator）	Wireless remote control and Dual axis joystick controller
Operate system	Operating characteristic	Full proportional control and Proportional joystick control
Dimension	Length×Width×Height	5950mm×1780mm×2500mm
Weight	(Without optional equipment）	10500kg
Standard equipment	Diesel engine and motor (Dual power)、Proportional joystick control and wireless proportional remote (Dual operation mode) 、Intelligent display screen、Moment limiter、Over hoist alarm and automatic stop device、Three-winding alarm and automatic stop device、Automatic hook stow、Outrigger position detector device、Outrigger off ground (or crane body 3-degree inclination)alarm and automatic stop device、Slinging rope detachment protector、EMO switch、Three color lamp、Remote control lamp、Voice prompt、Walking/Outrigger/Boom three-mode interlock system、Data records
Optional equipment	Searcher hook（1t）、Fly jib(1.5t)、Single fall hook、Outrigger Pads、Man basket

Total rated load Outriggers at Maximum (any other) position（6fall）

Working radius (m)	Total rated load（t）
	5.60 boom		9.10 boom		12.60 boom		16.10 boom		19.60 boom
	Other	Max	Other	Max	Other	Max	Other	Max	Other	Max
2.40	8.50	8.50	6.80	6.80	5.00	5.00	3.70	3.70	—	—
2.50	8.15	8.15	6.70	6.70	4.90	4.90	3.65	3.65	—	—
3.00	7.20	7.20	6.50	6.50	4.80	4.80	3.60	3.60	2.50	2.50
3.50	6.00	6.00	5.50	5.50	4.70	4.70	3.50	3.50	2.50	2.50
4.00	5.00	5.00	4.80	4.80	4.70	4.70	3.45	3.45	2.45	2.45
4.50	4.00	4.20	4.00	4.20	4.00	4.10	3.20	3.40	2.40	2.45
5.00	3.10	3.80	3.10	3.80	3.10	3.70	3.10	3.40	2.35	2.40
6.00			2.20	3.20	2.20	3.10	2.20	2.80	2.20	2.40
7.00			1.50	2.70	1.50	2.60	1.50	2.40	1.50	2.00
8.00			1.20	2.30	1.20	2.10	1.20	2.10	1.20	1.70
8.50			1.10	2.10	1.10	1.90	1.10	1.90	1.10	1.60
9.00					1.00	1.70	1.00	1.70	1.00	1.50
10.00					0.70	1.30	0.70	1.30	0.70	1.30
11.00					0.55	1.05	0.55	1.05	0.55	1.05
12.00					0.50	0.90	0.50	0.90	0.50	0.90
13.00							0.45	0.85	0.45	0.85
14.00							0.40	0.75	0.40	0.75
15.00							0.35	0.65	0.35	0.65
15.50							0.32	0.60	0.32	0.60
16.00									0.30	0.58
17.00									0.25	0.50
18.00									0.20	0.45
19.00									0.15	0.35
